Grouping form elements

The Fieldset icon inserts a bounding box that visually groups form elements. You can use the legend to tell viewers the purpose of the options grouped in the field set.

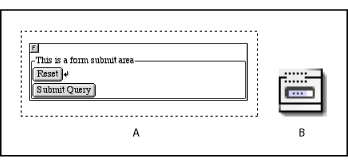

The fieldset icons A. Fieldset Legend marker B. Fieldset icon

Note: This may not render correctly in all browser versions. Be sure to test your form with the preview in browser feature, and live before publishing your form.

To insert a Fieldset and Legend:

1. Drag the Fieldset icon from the Forms set in the Objects palette to your form.
2. In the Form Fieldset Inspector, select Use Legend if you want a legend to appear in the field-set boundary.
3. Choose the legend alignment from the Alignment pop-up menu:
• Default positions the legend according to the browser's preferences. (If the browser does not specify any legend alignment preferences, the legend will be left-aligned.)
• Left positions the legend in the upper left corner of the field set.
• Center positions the legend in the upper middle of the field set.
• Right places the legend in the upper right corner of the field set.
4. Double-click the legend in the field set, and then type a name.
